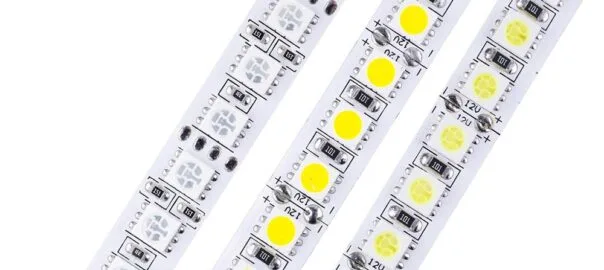

Diferenta dintre LED-urile SMD
In primul rand , ce este SMD ?
SMD inseamna dioda montata la suprafata , acestea fiind folosite adesea la benzile LED . Aceasta tehnologie este mult mai avansata decat prima generatie ( DIP LED ). SMD-urile sunt montate pe un substrat de aluminiu si sunt invelite intr-o rasina epoxidica. Eficienta iluminarii cu LED SMD este cea mai buna , producand cea mai mare luminozitate dintre toate tipurile.

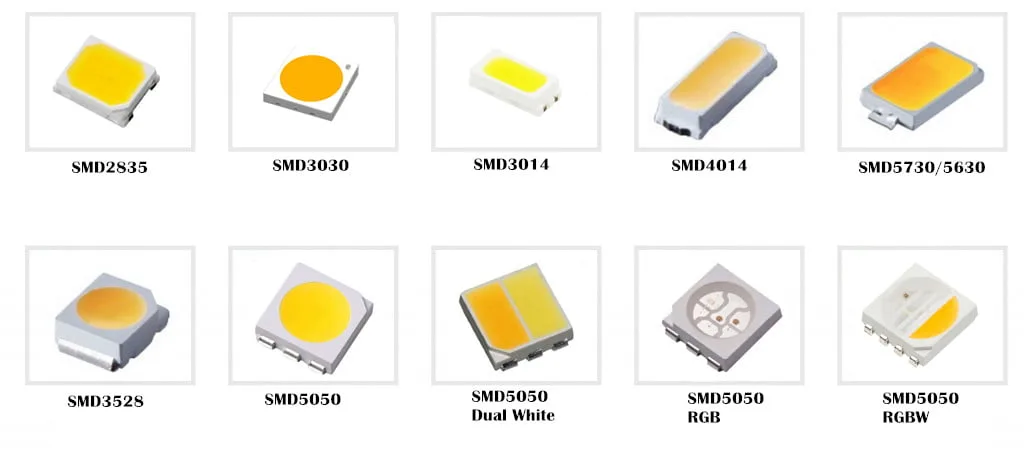

Cele mai comune SMD-uri utilizate in benzile LED
SMD2835 (0.2W/LED)
SMD5050 (0.2W/LED)
SMD5730/5630 (0.5W/LED)
SMD3014 (0.1W/LED)
SMD4014 (0.2W/LED)
SMD3030 (1W/LED)
SMD5050 RGB 0.2W/LED)
SMD5050 RGBW (0.2W/LED)
SMD5050 Dual White (0.2W/LED)
Temperatura masurata in Kelvin
| MODEL | Densitate | Putere | Latime | CCT | Lumen/m |
| SMD3528-150 | 30LED/M | 2.4W/M | 8mm | 2700K-6500K | 100-150LM |
| SMD3528-300 | 60LED/M | 4.8W/M | 8mm | 2700K-6500K | 200-300LM |
| SMD3528-600 | 120LED/M | 9.6W/M | 5mm/8mm | 2700K-6500K | 400-600LM |
| SMD3528-1200 | 240LED/M | 19.2W/M | 15mm | 2700K-6500K | 800-1200LM |
| SMD2835-300 | 60LED/M | 12W/M | 8mm | 2700K-6500K | 1000-1200LM |
| SMD2835-600 | 120LED/M | 18W/M | 8mm | 2700K-6500K | 2000-2400LM |
| SMD5050-150 | 30LED/M | 7.2W/M | 10mm | 2700K-6500K | 450-550LM |
| SMD5050-300 | 60LED/M | 14.4W/M | 10mm | 2700K-6500K | 900-1100LM |
| SMD5050-600 | 120LED/M | 28.8W/M | 15mm | 2700K-6500K | 1800-2200LM |
| SMD5630-300 | 60LED/M | 12W/M | 10mm | 2700K-6500K | 1000-1200LM |
| SMD3014-300 | 60LED/M | 12W/M | 4mm/8mm | 2700K-6500K | 1000-1200LM |
| SMD3014-600 | 120LED/M | 18W/M | 4mm/8mm | 2700K-6500K | 2000-2400LM |
| SMD4014-300 | 60LED/M | 12W/M | 8mm | 2700K-6500K | 1000-1200LM |
Culorile modelelor SMD
| MODEL | Culori |
| SMD3528-150 | alb, rosu, verde, albastru , galben , roz , violet , portocaliu , IR , UV |
| SMD3528-300 | alb, rosu, verde, albastru , galben , roz , violet , portocaliu , IR , UV |
| SMD3528-600 | alb, rosu, verde, albastru , galben , roz , violet , portocaliu , IR , UV |
| SMD3528-1200 | alb, rosu, verde, albastru , galben , roz , violet , portocaliu , IR , UV |
| SMD2835-300 | alb, rosu, verde, albastru , galben , roz , violet , portocaliu , IR , UV |
| SMD2835-600 | alb, rosu, verde, albastru , galben , roz , violet , portocaliu , IR , UV |
| SMD5050-150 | alb, rosu, verde, albastru , galben , roz , violet , portocaliu , IR , UV , RGB, RGBW, Dual White |
| SMD5050-300 | alb, rosu, verde, albastru , galben , roz , violet , portocaliu , IR , UV , RGB, RGBW, Dual White |
| SMD5050-600 | alb, rosu, verde, albastru , galben , roz , violet , portocaliu , IR , UV , RGB, RGBW, Dual White |
| SMD5630-300 | alb, rosu, verde, albastru , galben , roz , violet |
| SMD3014-300 | alb, rosu, verde, albastru , galben , roz , violet |
| SMD3014-600 | alb, rosu, verde, albastru , galben , roz , violet |
| SMD4014-300 | alb, rosu, verde, albastru , galben , roz , violet |
